A mesh LED display is a lightweight, open-structure digital display system designed to mount across building exteriors and architectural features. Because the pixels are spaced apart, the display can look “see-through” from many angles while still delivering bold visuals from viewing distances. Therefore, it’s ideal for media facades, canopies, and large-scale outdoor branding.
Mesh LED Display System for Outdoor Media Facades
Turn large building surfaces into a high-impact canvas without blocking architecture. This Mesh LED Display System is built for outdoor facades, so you can run dynamic content while still allowing airflow and sightlines. As a result, it suits landmark projects where a solid screen would feel heavy or impractical.
Mesh LED Overview
Key Features of the Mesh LED
01
A Transparent Display with Open-Structure Mesh Format
The open structure format of this transparent display keeps the facade visually lighter. This allows the the design intent to stay intact as a result. This Mesh Led suits architects as well as facade designers looking to add a dynamic visual element to their project.
02
A Mesh LED Display System with Outdoor-Rated Protection
This Mesh Led Display System is built for exterior exposure. As a result, it performs reliably in demanding public environments (IP-rated options available).
03
High Brightness for Daylight Visibility
This Mesh LED Display system supports bright, punchy content outdoors. As a result, brand messages stay readable even in direct sunlight.
04
Flexible Pixel Pitch Choices
This flexible LED display allows you to choose LED spacing in order to balance image detail vs transparency. You can also match viewing distance and facade constraints.
05
Aluminium Structure with Heat Dissipation
The Aluminium Structure of this LED Mesh Display system improves stability and thermal performance. It also supports long run times in hot locations.
06
Signal Redundancy Options
The Signal Redundancy Option helps prevent a single failure from impacting the full run. This feature improves operational confidence as a result.
Where to Use This Mesh LED

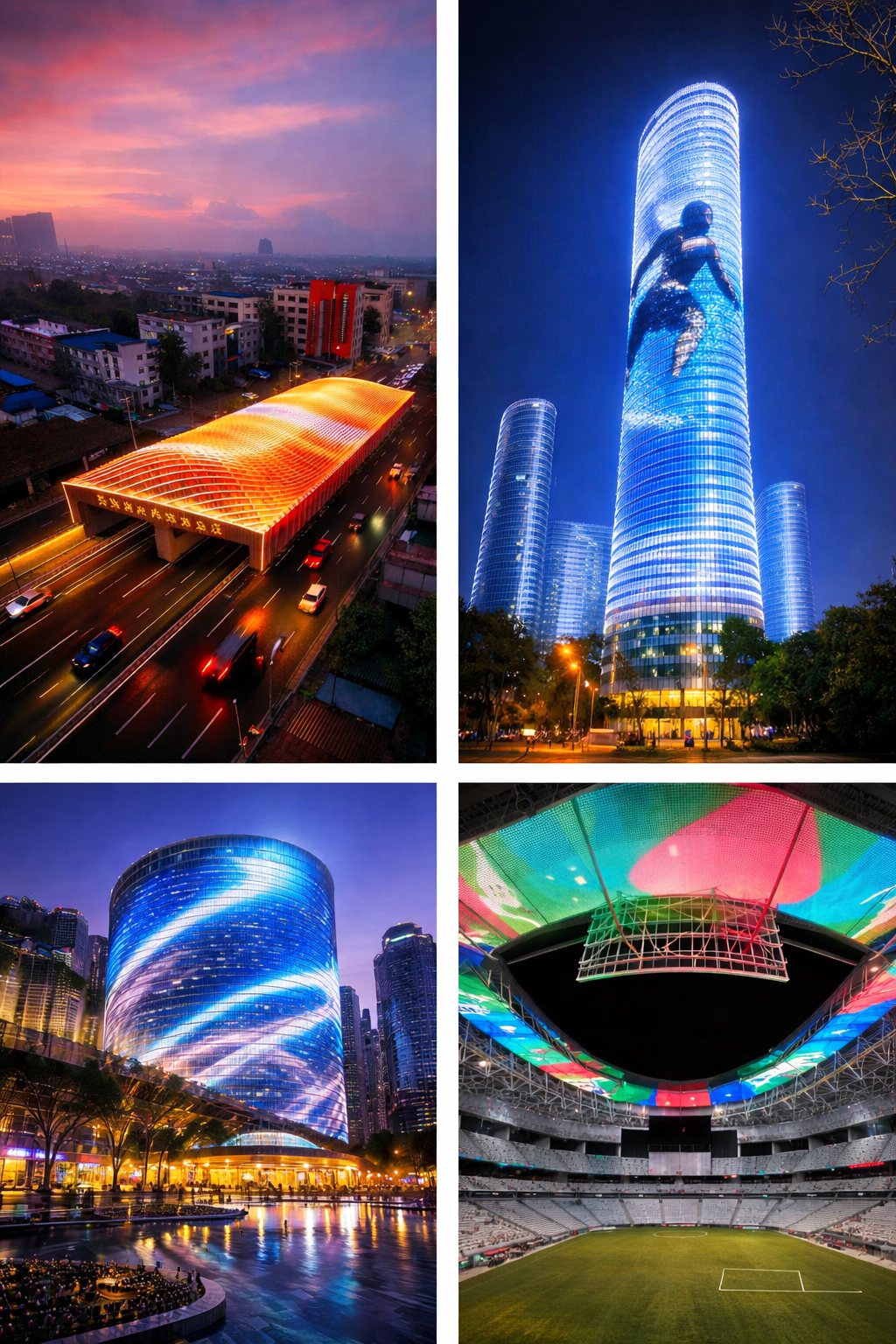

This mesh LED system is designed for large, high-visibility outdoor projects. For example:

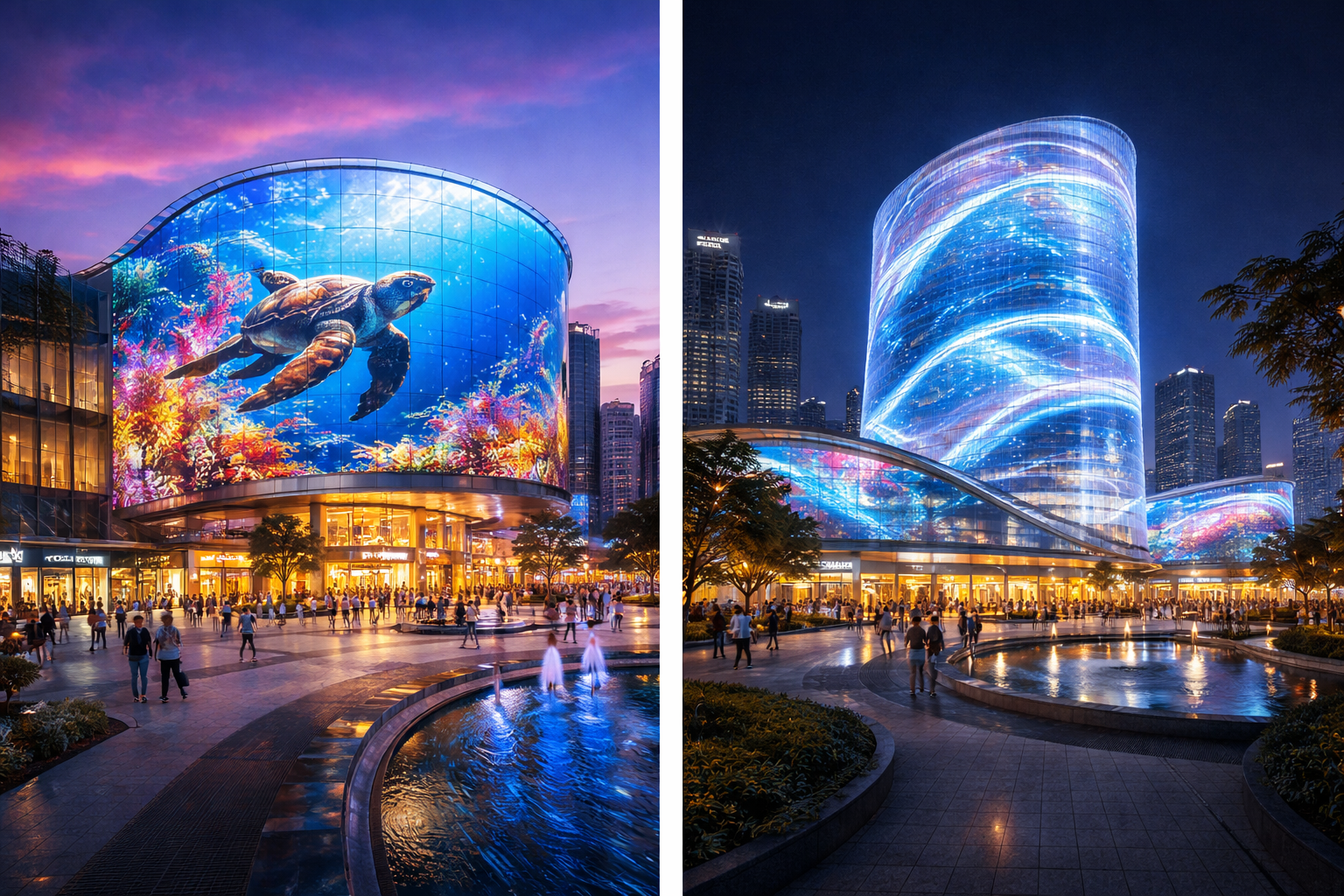

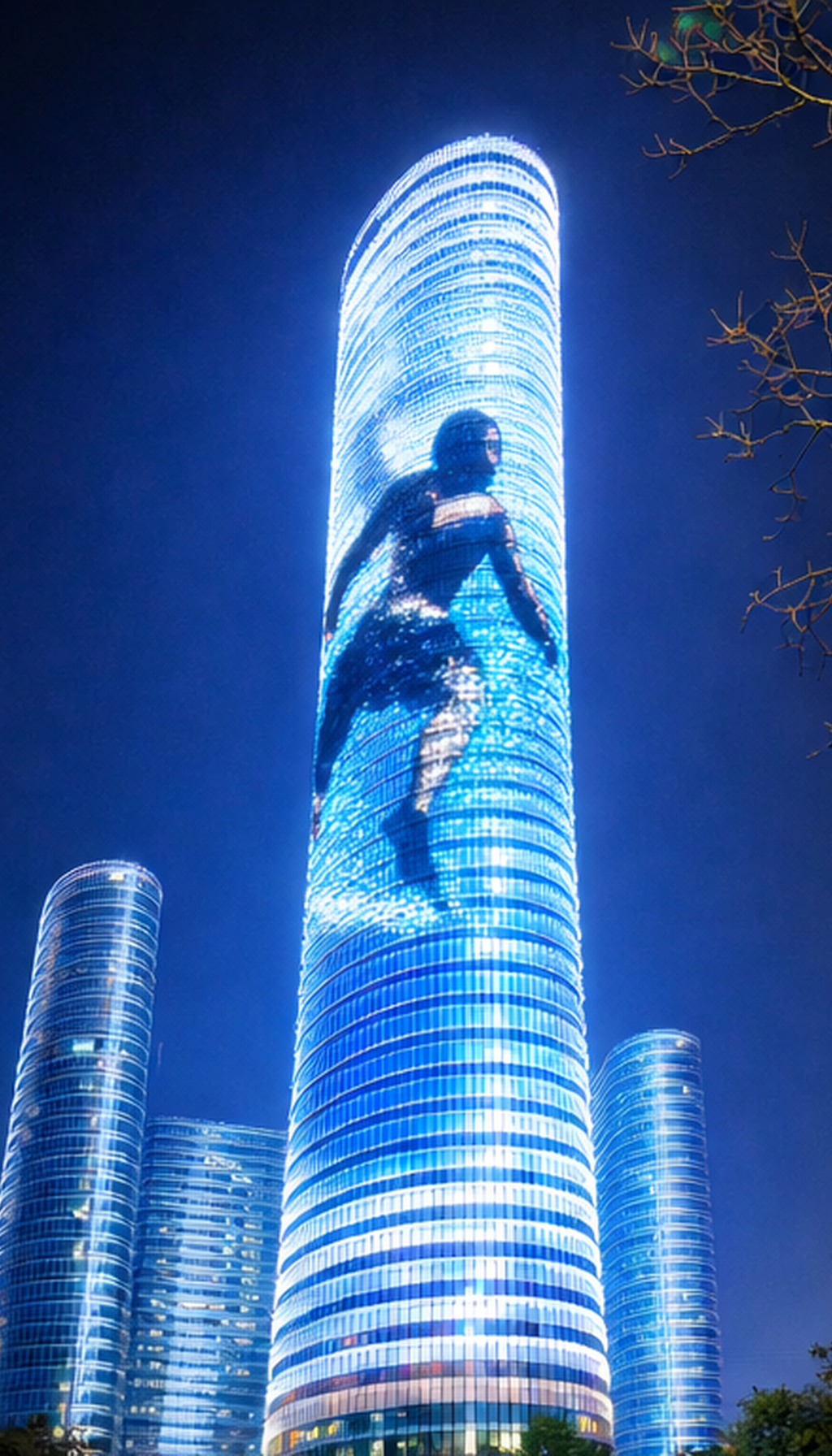

- Transparent LED Display wraps on office towers and corporate headquarters

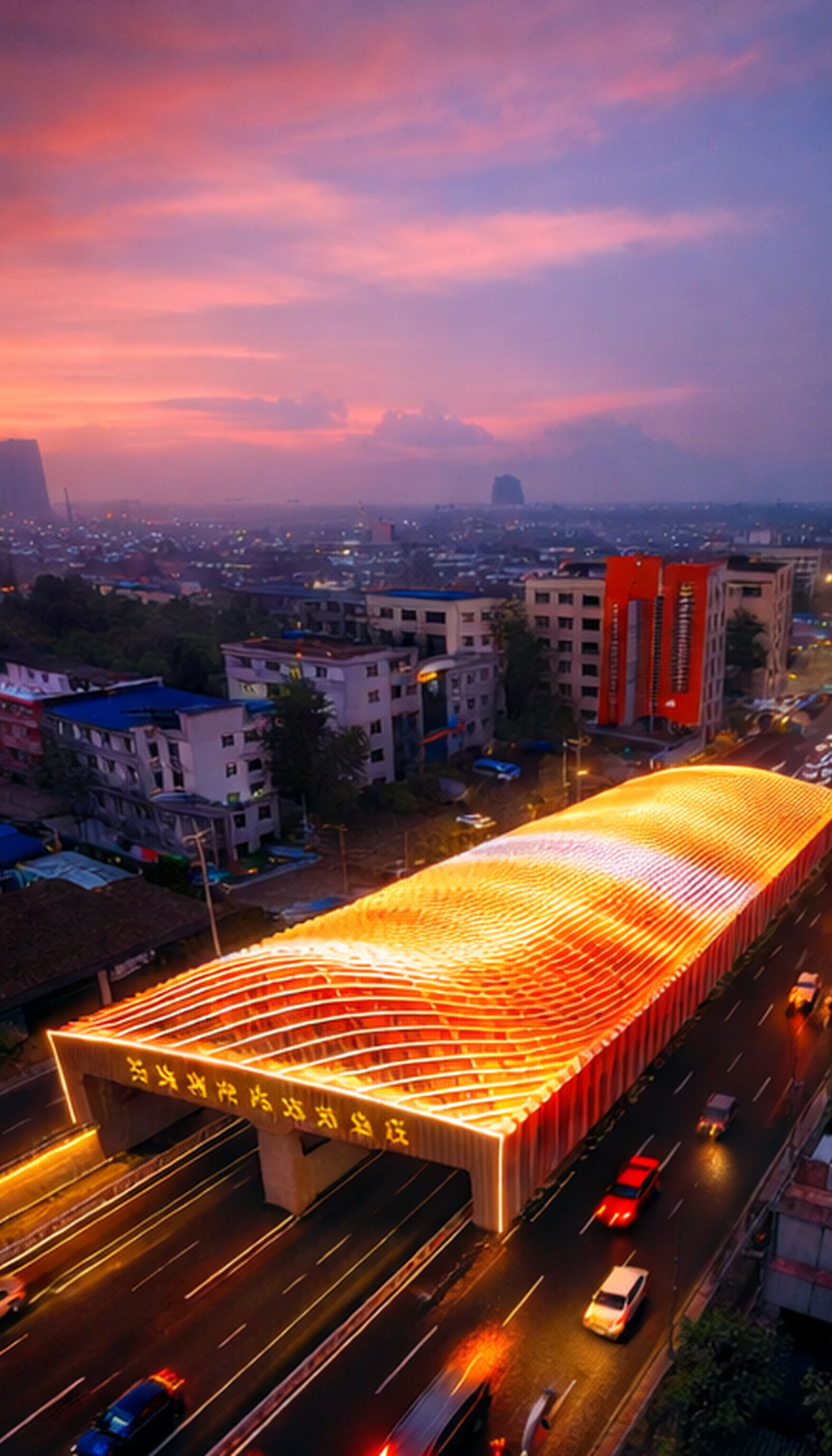

- Shopping centres, retail precincts, and outdoor canopy features
- Airports, transport hubs, and public infrastructure upgrades
- Stadiums and sports venues needing lightweight perimeter displays
- Hotels, casinos, and entertainment districts that need night-time impact
- City councils, tourism landmarks, and iconic building projects
- Outdoor advertising networks and media facade developments
Because the system is modular, it can scale from feature sections to full-building media facades.
Metrospec's Mesh LED Specifications & Configuration Options
Because facade projects vary, this Transparent LED Display is configurable to suit your site constraints:
- Pixel pitch selection to match viewing distance and content type
- Module spacing and layout for curved, angled, or segmented facade zones
- Control and redundancy design to suit critical public-facing deployments
- Mounting approach for frames, secondary steel, canopies, or feature fins
| LED Stick Display | H29D20-SMD | H29D20-DIP | H29D20-RDBW |
|---|---|---|---|
| LED | SMD | SMD | SMD RDBW |
| Pixel Pitch (customisable) | P16, P20, P25, P30 | P16, P20, P25, P30 | P16.667 |
| Pixel Configuration | 1SMD, 1SMD, 2SMD, 2SMD | 1R1G1B, 1R1G1B, 3R2G1B, 3R2G1B | N/A |
| Brightness | ≥2cd, ≥2cd, ≥6cd, ≥6cd, | ≥6cd, ≥6cd, ≥12cd, ≥12cd, | N/A |
| Appearance Size (LxHxD) Length Customisable | 1024mmx29mmx20mm 1280mmx29mmx20mm 1000mmx29mmx20mm 960mmx29mmx20mm | 1024mmx29mmx20mm 1280mmx29mmx20mm 1000mmx29mmx20mm 960mmx29mmx20mm | 1024mmx29mmx20mm |
| Shell Material | Aluminium | Aluminium | Aluminium |
| Weight | 0.9kg/m | 1.0kg/m | 0.9kg/m |
| Colour Processing | 16 bit | 16 bit | 16 bit |
| Viewing Angle | 140°/140° | 120°/60° | 120°/60° |
| Colour Temperature | 3000 ~ 9500k (Adjustable) | 3000 ~ 9500k (Adjustable) | 5000k (Adjustable) |
| Input Voltage | DC 24V | DC 24V | DC 24V |
| Unit Power Consumption | 0.3 W/pixel and 0.6 W/pixel | 0.3 W/pixel and 0.5 W/pixel | 0.4 W/pixel |
| Max Power Consumption | 19.2W, 19.2W, 24W, 24W | 19.2W, 19.2W, 20W, 16W | 30W |
| IP Rating | IP67 | IP67 | IP67 |
| Operating Temperature | -10~50°C | -10~50°C | -10~50°C |
| Operating Humidity | 10~80% RH | 10~80% RH | 10~80% RH |
| LED Lifetime | 100,000 hrs | 100,000 hrs | 100,000 hrs |
Why Choose This Mesh LED Over Alternatives
Commercial Display vs Consumer TV
A consumer TV is not designed for permanent outdoor installation. However, a commercial mesh LED display is purpose-built for exterior exposure, modular servicing, and large-format scalability. Therefore, it’s the safer choice for public assets as well as long-life facade projects.
Mesh LED vs solid LED wall
A solid LED wall can be visually dominant and heavy. In contrast, a transparent LED display style mesh keeps the building readable and also reduces wind load concerns for many designs. In fact, mesh is often preferred for architectural media facades and airflow-sensitive sites.
Mesh LED vs outdoor LCD
Outdoor LCDs can work for smaller, enclosed signage. However, it becomes complex and costly at true facade scale. Therefore, mesh LED is typically the more practical option for very large, custom-shaped exterior surfaces.
Related Mesh LED Solutions
If you’re evaluating options, these related solutions may also fit your project:
- Transparent Glass LED Displays (for storefront glazing and high transparency needs)
- Outdoor Digital Signage Displays (for freestanding, way finding, and entry zones)
Ask Us Anything
Mesh LED FAQs
What is a mesh LED and how does it differ from a normal LED screen?
A mesh LED uses spaced pixels in an open structure. Therefore, it can appear transparent while still delivering bright outdoor visuals.
Is this outdoor transparent display suitable for building facades and canopies?
Yes. In addition, it’s commonly used for media facades, canopy features, and landmark exteriors because it scales well.
How do I choose the right mesh LED screen pixel pitch?
Pixel pitch should match viewing distance and content. For example, tighter pitch suits closer viewing, while wider pitch increases openness and reduces hardware density.
Will a mesh LED facade handle weather and heat?
Because this transparent led display is designed for outdoor operation with high brightness and has an aluminium structure for heat performance. it can handle harsh weather and heat.
Can you install a mesh LED display on curved or irregular architecture?
Yes, in many cases. Because it’s modular, it can be laid out across segmented zones as well as non-standard shapes. This depends on framing as well as engineering.
What happens if one section fails?
Mesh systems can support redundancy approaches, so a single issue is less likely to take down the whole display. Therefore, it’s better for mission-critical facades.
Is mesh LED better than a transparent LED display for my project?
It depends on the surface. However, mesh is usually better for airflow-friendly facade coverage, while glass-style transparent LED is often better for glazing and shopfronts.
Who typically specifies and buys a mesh LED display?
Commercial developers, architects, facade designers, builders, signage integrators, and also AV/electrical contractors find this is a great solution to creating a stunning artistic canvas on the facades of buildings and more. Additionally, councils and also tourism bodies often specify mesh displays for landmark projects.
Need help selecting the right digital display?
Speak with our team to discuss your project and find the right solution.
