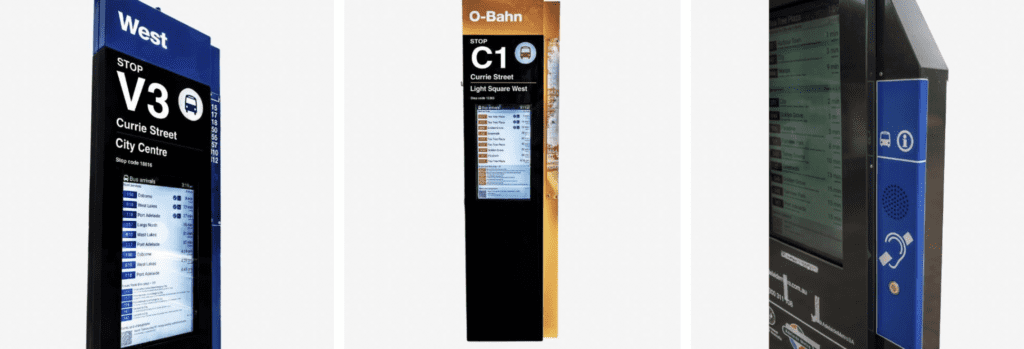

outdoor digital totem - Adelaide Bus Stop

OUTDOOR DIGITAL TOTEM

Our Outdoor Digital Totems are sunlight readable, weather resistant, sleek & modern.  They are also IP65 rated and built to operate 24/7.

Learn more
outdoor digital totem - front on

BENEFITS OF AN OUTDOOR DIGITAL TOTEM

Our outdoor digital totems display bright, clear, easy to understand passenger information.  In addition, these totems also make it easy to update passengers about travel delays and cancellations.  Thus allowing you to keep your passengers in the loop and happy as a result.

Additionally, our totems also feature a sleek and lightweight design.  They also provide CO2 reduction and are compatible with some solar panels.   Making them green friendly as a result.




LCD OUTDOOR SCREENS

Our vandal resistant displays have brightness of up to 4,000 Nits.  This means they are viewable even in direct sunlight.  Yet, thanks to an auto dimming feature they are also readable in dim-light and at night.

To top things off, our screens also have a wide viewing angle and use backlighting.  They are also designed to operate 24/7 for years on end.





LARGE RANGE OF SIZES

Our outdoor digital totems come in a range of sizes.  This includes anything between 32” – 86”.  They can also display in landscape or portrait modes.





OUTDOOR DIGITAL TOTEMS BUILT TO LAST

Our displays are IP65 rated.  This means they are strong, sturdy, weather resistant and dust proof.  Additionally, vandal resistant features make them scratch proof, shatter proof and high impact proof.  These totems are a vandals worst nightmare as  result.



PRODUCT DETAILS

Our Digital Bus Stop Totems can provide timetable information, service disruption and delay messages.  They can also be used to display public and point of sale information, travel changes and much more.  This product ideal for public transport, rail, bus and ferry applications as a result.

OUTDOOR DIGITAL TOTEM FEATURES

In addition, this totem can have static messages sent to it every 20-30 seconds.  This is done via wireless LAN/USB/Bluetooth display networks.  This display is also capable of receiving and displaying complex, up-to-date information from a remote source.





CUSTOMISABLE

Enclosures are available in different colours.  They also feature a range of options such as audio and touch screen.  Other feature also include USB, 3G/4G, ethernet and Wi-Fi to suit all users.  Our screens can also display in a black and white or colour options.





CONVENIENCE

Our Outdoor Digital Totem is fully serviceable in the field.  This makes servicing and fixing the rare issue a breeze as a result.




FLEXIBLE

Various software options are available to run content and display information on screen.  Making updating information easy as a result.



outdoor digital totem - O-Bahn Bus Stop

TECHNICAL SPECIFICATIONS

Our Outdoor Digital Totem’s LCD Panel is available in a range of sizes from 32” – 86″.  Technical specifications for the 32” are listed below.  Please contact us directly for information on other sizes or configurations to meet your requirements.

Series ModelEnclosed MonitorEnvironmentalOptionsAccessories
SERIES MODEL
32" LCD Digital Bus Stop Totem
LCD Panel Size32"
Resolution1920 x 1080, RGB Stripe Arrangement
Brightness2000 Nits
Contrast Ratio1300:1 (typ).
Response Time25ms (typ).
Viewing AngleViewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)
Half Light Life Time50,000 Hours
Active Area698.4 (H) x 392.9 (W) mm
Power Consumption180W
STANDARDS
EN55002 - CE - IEC60950Standard
ENCLOSED MONITOR
AluminiumStandard
Enclosure Colour BlackStandard
Other ColoursOption
DimensionsTall = 710mm (W) x 2570mm (H) x 110mm (D); Short = 710mm (W) x 2070mm (H) x 110mm (D)
WeightTall = 120 kg; Short = 90 kg
6.4mm Thickness, HIgh UV Limiting GlassStandard
Stainless Steel Floor Plinth790 x 150 mm
ENVIRONMENTAL
Operating Temperature15⁰C to +50⁰C
Optional Extended Operative Temperature which includes Intelligent Internal Environmental Control System-35⁰C to +50⁰C
Storage Temperature-20⁰C to +60⁰C
Humidity
10% to 90%
OPTIONS
InputsEthernet, Wi-Fi, USB, 3G/4G, Audio
Video Input OptionsDVI / VGA / Composite / RGB
Bird DeterrentsBird Rollers, Bird Spikes, Protection Hoods
Touch ScreensNear Field Capacitive or Infrared
Security & Protection OptionsPassword protected remote control, Condensation protection circuitry, over/under temperature protection, Intelligent Internal Environment Control
Software OptionsMetroSpec Display Monitoring System (MDMS), MetroSpec Network Monitoring Software (MNMS), Third Party Scheduling Software
ACCESSORIES
Remote Control / AAA Batteries (2)Standard
Quick Start GuideStandard
VGA CableStandard

APPLICATIONS


Airports


Public Transport


Stadiums and Arena’s


Tourism
