This outdoor LED sign is a modular, large-format outdoor digital display for permanent outdoor installation, where sunlight, rain, heat, and dust are expected. Unlike one piece outdoor displays, this MetroSpec solution uses LED module panels and cabinets. As a result you can build the exact screen size, aspect ratio, and shape your site demands. In addition, because of this, this digital display suits everything from roadside digital billboards to stadium replay screens as well as precinct branding walls.
Outdoor LED Sign
For High-Visibility Digital Signage Communication
If you need an outdoor LED sign that stays bright, reliable, and sharp in harsh conditions, MetroSpec’s Outdoor LED Sign is built for the job. It’s weatherproof, modular, and customisable, so you can scale from a single facade to a full digital billboard face. As a result, large-format advertisers and venues can run crisp video content 24/7 without the usual outdoor headaches.
An Outdoor LED Sign for High-Visibility Environments
Key Features of the Outdoor LED Sign
01
IP-Rated Outdoor LED Sign
This outdoor LED digital display is for outdoor use, with many models listed as IP65 front / IP54 rear. However, IP ratings vary by series, so the final rating depends on the chosen configuration. As a result, you can match the build to how exposed the install location is.
02
Outdoor LED Sign Readable in Daylight
Brightness for this outdoor digital display varies by model and ranges from 3,500 nits up to >7,000 nits. As a result, content remains readable even in direct sunlight when you select the right series for your site.
03
Outdoor LED Signage with Custom sizes and Modular Cabinets
This outdoor display is built from modular cabinets and panels, so you can scale to billboard-sized surfaces or build around architectural constraints. In addition, modular design can also simplify future expansion or partial servicing.
04
Outdoor LED Sign With High Refresh For Smooth Motion
Refresh rates depend on series and are listed as 1920Hz or 3840Hz. Consequently, fast motion content (sport, live events, roadside loops) can also appear smoother when the correct series is specified.
05
Outdoor LED Sign with Serviceability Options
Maintenance access is listed as rear service on some series and front & rear on others. As a result, you choose a service method that fits your mounting design and access limitations.
06
Long-life performance
This Outdoor LED Sign suits long-term networks and permanent outdoor installs thanks to its durable build and longevity.
Viewing angles vary across the range, with horizontal angles shown at 140° or 160° depending on series. Because of this, you can choose the right model for wide-audience viewing zones.
Where to Use Metrospec's Outdoor LED Sign
This outdoor LED sign is designed for high-impact public viewing. However, the best fit depends on viewing distance and pixel pitch.
Where to Use This Outdoor LED Sign
This outdoor LED sign is designed for high-impact public viewing. However, the best fit depends on viewing distance and pixel pitch.
An Outdoor LED Sign For Large-Scale Outdoor Advertisers (Digital Billboard Operators, Media Companies)
Choose pixel pitches suited to longer viewing distances, and keep brightness high for roadside legibility.
Outdoor LED Sign for Stadiums and Sports Venues
Run live video replays and sponsor loops smoothly because refresh and brightness support fast motion content.
How Shopping Centres and Retail Precinct Owners Benefit from Outdoor LED Signs
Build custom sizes for façades, entry statements, or precinct-wide messaging. In addition, modularity makes future expansion simpler.
How Event Organisers Use Outdoor LED Signs (Concerts, Festivals, Exhibitions)
Use high-brightness LED for outdoor stages, entrances, and wayfinding. As a result, messaging stays visible all day.
Outdoor LED Signs for Government, Councils, and Transport Environments
Deploy for public communication and safety signage, especially where weather resistance is non-negotiable.
Outdoor LED Signs for Construction and Infrastructure Projects
Our Outdoor LED Sign creates large, legible safety and progress messaging. Therefore, updates can stay consistent across shifting site conditions.
Specifications and Configuraiton Options For The Metrospec Outdoor LED Sign
Every project has different viewing distances and structural limits. As a result, we offer multiple series and builds for this outdoor display:
- Pixel pitch selection (2.5mm–20mm) Lower pitch suits closer viewing, while higher pitch suits distance viewing.
- Cabinet formats and weights Cabinet dimensions and kg/m² vary by series.
- Service access choice — Pick rear service or front & rear service depending on whether you can access the back of the sign.
- Controller ecosystem Configure around workflows to suit your operations team and content pipeline.
| SERIES MODEL | XA2.5 | XA3 | XA4 | XA5 | XA6 | XAP12 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.5 mm | 3 mm | 4 mm | 5 mm | 6 mm | 12 mm |
| Pixel Configuration | Black SMD | Black SMD | Black SMD / White SMD | White SMD | Black SMD / White SMD | White SMD |
| Module Dimensions W x H x D | 180 x 240 mm | 192 x 192 mm | 180 x 240 mm | 240 x 180 mm | 180 x 240 mm | 180 x 240 mm |
| Cabinet Dimensions W x H X D | 1080 x 960 mm | 768 x 768 mm | 1080 x 960 mm | 960 x 720 mm | 1080 x 960 mm | 1080 x 960 mm |
| Weight | 45 kg m² Aluminium | 45 kg m² Aluminium | 45 kg m² Aluminium | 45 kg m² Aluminium | 45 kg m² Aluminium | 45 kg m² Aluminium |
| IP Front/Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Cabinet Material | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium |
| Maintenance Access | Rear | Rear | Rear | Rear | Front & Rear | Front & Rear |
| Brightness | 3500 Nits | 4000 NIts | 4000 / 6000 Nits | 6000 Nits | 4000 / 6000 Nits | 6000 Nits |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° | 140° | 140° |
| Vertical Viewing Angle | 70° Down | 70° Down | 70° Down | 70° Down | 70° Down | 70° Down |
| Max. Power Consumption (W/m2) | 1080 | 1080 | 870 | 870 | 870 | 875 |
| Refresh Rate | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz |
| Lifetime (Half Brightness) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C |
| Humidity | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH |
| Controller | Sansi / Nova | Sansi / Nova | Sansi / Nova | Sansi / Nova | Sansi / Nova | Sansi / Nova |
| SERIES MODEL | XF2.9 | XF3.9 |
|---|---|---|
| Pixel Pitch (mm) | 2.9 mm | 3.9 mm |
| Pixel Configruation | Black SMD | Black SMD / White SMD |
| Module Dimensions (W x H x D) | 250 x 250 mm | 250 x 250 mm |
| Cabinet Dimensions (W x H xD) | 500 x 500 mm | 500 x 500 mm |
| Weight | 36 Kg/m² | 42 Kg/m² |
| IP ( Front / Rear) | 65 | 65 |
| Cabinet Material | Die - Cast Aluminium | Die - Cast Aluminium |
| Maintenance Access | Front & Rear | Front & Rear |
| Brightness | 4000 Nits | >4000 Nits |
| Horizontal Viewing Angle | 140° | 140° |
| Vertical Viewing Centre | 140° | 140° |
| Max Power Consumption (W/m²) | 975 | 900 |
| Refresh Rate | 3840 Hz | 3840 Hz |
| Lifetime (Half Brightness) | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +60°C | -20 to +60°C |
| Operating Humidity | 5%RH to 95%RH | 5%RH to 95%RH |
| Controller | Sansi / Nova | Sansi / Nova |
| SERIES | XL10 | XL12 | XL16 | XL20 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 10 mm | 12 mm | 16 mm | 20 mm |
| Pixel Configuration | DIP | DIP | DIP | DIP |
| Module Dimensions (WxHxD) | 240 x 240 mm | 240 x 240 mm | 240 x 240 mm | 240 x 240 mm |
| Cabinet Dimensions | 960 x 960 mm | 960 x 960 mm | 960 x 960 mm | 960 x 960 mm |
| Weight | 42 Kg/m² Aluminium | 42 Kg/m² Aluminium | 42 Kg/m² Aluminium | 42 Kg/m² Aluminium |
| IP (Front/Rear) | 65/54 | 65/54 | 65/54 | 65/54 |
| Cabinet Material | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium |
| Maintenance Access | Rear & Front | Rear & Front | Rear & Front | Rear & Front |
| Brightness | >7000 Nits | >7000 Nits | >7000 Nits | >7000 Nits |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Vertical Viewing Angle | 60° Down | 60° Down | 60° Down | 60° Down |
| Max. Power Consumption (W/m²) | 450 | 450 | 430 | 430 |
| Refresh Rate | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz |
| Lifetime (Half Brightness) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C |
| Operating Humidity | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH | 5%RH-95%RH |
| Controller | Sansi / Nova | -20~+50/10~90% | -20~+50/10~90% | -20~+50/10~90% |
| SERIES MODEL | XS6 | XS8 | XS10 | XS16 | XS20 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 6.6 mm | 8 mm | 10 mm | 16 mm | 20 mm |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Module Dimensions (W x H x D) | 320 x 240 | 320 x 240 | 320 x 240 | 320 x 240 | 320 x 240 |
| Cabinet Dimensions (W x H x D) | 1280 x 960 | 1280 x 960 | 1280 x 960 | 1280 x 960 | 1280 x 960 |
| Weight | 42 kg/m² Aluminium | 42 kg/m² Aluminium | 42 kg/m² Aluminium | 42 kg/m² Aluminium | 42 kg/m² Aluminium |
| IP (Front/Rear) | 65/54 | 65/54 | 65/54 | 65/54 | 65/54 |
| Cabinet Material | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium | Steel / Aluminium |
| Maintenance Access | Rear and Front | Rear and Front | Rear and Front | Rear and Front | Rear and Front |
| Brightness | >6000 Nits | >6000 Nits | >6000 Nits | >6000 Nits | >6000 Nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 70° Down | 70° Down | 70° Down | 70° Down | 70° Down |
| Max Power Consumption (W/m²) | 850 | 850 | 850 | 850 | 650 |
| Refresh Rate | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| Lifetime (Half brightness) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C | -20 to +60° C |
| Operating Humidity | 5%RH to 95%RH | 5%RH to 95%RH | 5%RH to 95%RH | 5%RH to 95%RH | 5%RH to 95%RH |
| Controller | Sansi / Nova | Sansi / Nova | Sansi / Nova | Sansi / Nova | Sansi / Nova |
| SERIES MODEL | XT8 | XT10 |
|---|---|---|
| Pixel Pitch (mm) | 8 mm | 10 mm |
| Pixel Configuration | SMD | SMD |
| Module Dimensions (W x H x D) | 320 x 160 | 320 x 160 |
| Cabinet Dimensions (W x H x D) | 960 x 960 | 960 x 960 |
| Weight | 40 kg/m² | 40 kg/m² |
| IP (Front/Rear) | 65/54 | 65/54 |
| Cabinet Material | Die Casting Aluminium | Die Casting Aluminium |
| Maintenance Access | Rear | Rear |
| Brightness | >6000 Nits | >6000 Nits |
| Horizontal Viewing Angle | 140° | 140° |
| Vertical Viewing Angle | 140° | 140° |
| Max Power Consumption (W/m²) | 640 | 640 |
| Refresh Rate | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| Lifetime (Half brightness) | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +60° C | -20 to +60° C |
| Operating Humidity | 5%RH to 95%RH | 5%RH to 95%RH |
| Controller | Sansi / Nova | Sansi / Nova |

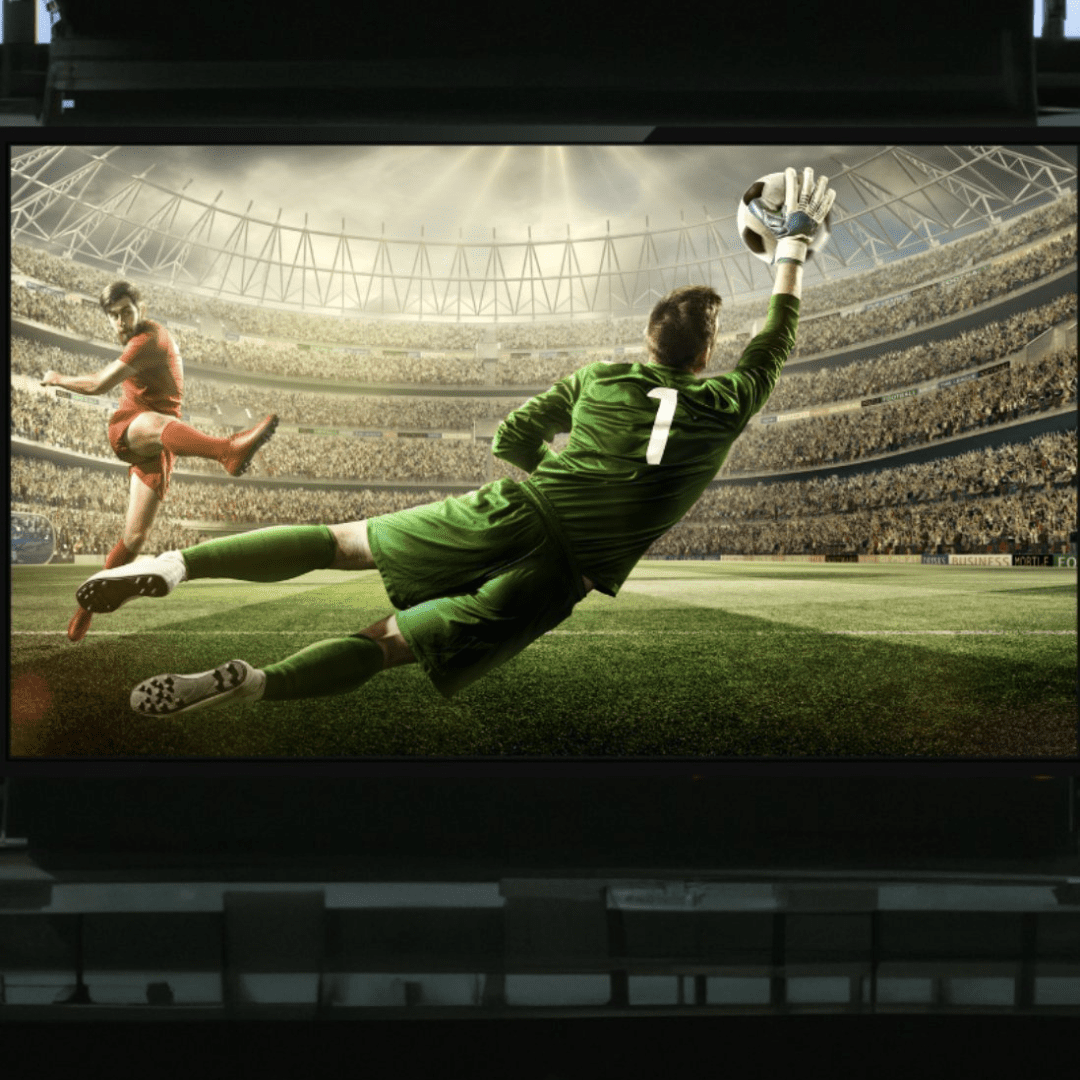

| SERIES MODEL | XQII6 | XQII10 | XQII12 |
|---|---|---|---|
| Pixel Pitch (mm) | 6.25 mm | 10 mm | 12.5 mm |
| Pixel Configuration | SMD | SMD | SMD |
| Module Dimensions (W x H x D) | 400 x 300 | 400 x 300 | 400 x 300 |
| Cabinet Dimensions (W x H x D) | 1600 x 900 x 113 | 1600 x 900 x 113 | 1600 x 900 x 113 |
| Weight | 38 kg/m² | 38 kg/m² | 38 kg/m² |
| IP (Front/Rear) | IP65 | IP65 | IP65 |
| Cabinet Material | Aluminium | Aluminium | Aluminium |
| Maintenance Access | Front / Rear | Front / Rear | Front / Rear |
| Brightness | >5500 Nits | >5500 Nits | >5500 Nits |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Max Power Consumption (W/m²) | 600 | 600 | 600 |
| Refresh Rate | > 3840Hz | > 3840Hz | > 3840Hz |
| Lifetime (Half brightness) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temperature | -20 to +50° C | -20 to +50° C | -20 to +50° C |
| Operating Humidity | 5%RH to 95%RH | 5%RH to 95%RH | 5%RH to 95%RH |
| Controller | Nova | Nova | Nova |
Why Choose This Outdoor LED Sign Over Alternatives
Outdoor LED sign vs Consumer TV
A consumer TV can look cheaper at first. However, it isn’t designed for exposed, 24/7 outdoor operation.
- Weather protection: This outdoor LED sign uses outdoor-rated protection (IP-rated), whereas consumer TVs need an enclosure and still risk moisture issues.
- Brightness: Outdoor LED brightness reaches thousands of nits, so content stays visible in sun. In contrast, TVs often wash out outdoors.
- Modular serviceability: With modular cabinets and access options, you can service sections. Therefore, downtime is lower than replacing a whole screen.
- Scale and shape: This outdoor LED sign is custom built to your site size and contours. As a result, you can create true billboard-scale surfaces.
- Outdoor LED sign vs outdoor LCD (what changes)
- Outdoor LCD has its place. However, for large-format advertising and venue video, LED usually wins.
- LED for large-format impact: Modular LED scales to billboard sizes more naturally. Therefore, it suits media owners and stadiums.
- Brightness headroom: Many LED configurations here reach >6,000–>7,000 nits. As a result, LED remains strong for high-glare sites.
- Viewing distance flexibility: With pixel pitch options from 2.5mm to 20mm, you can match the screen to near or far audiences.
Outdoor LED sign vs outdoor LCD
Outdoor LCD has its place. However, for large-format advertising and venue video, LED usually wins.
- LED Sign for large-format impact: This modular LED sign scales to billboard sizes more naturally. As a result, it suits media owners and stadiums.
- Brightness headroom: Many outdoor LED sign configurations here reach >6,000–>7,000 nits. Therefore, This outdoor LED sign remains strong and visible for high-glare sites.
- Viewing distance flexibility: With pixel pitch options from 2.5mm to 20mm, you can match the screen to near or far audiences.
Related Outdoor LED Sign Solutions
If you’re comparing formats or planning a broader network, these MetroSpec pages can help you shortlist faster:
- Outdoor Digital Signage Displays (range overview) for comparing outdoor LCD, LED, and specialty options.
- E-Series Outdoor LCD Display for high-brightness outdoor LCD when LED isn’t required.
- Outdoor LED Poster Display for a sleek, standalone outdoor LED format in public spaces.
- Outdoor Digital Signage category for related outdoor signage solutions and adjacent products.
Ask Us Anything
Outdoor LED Sign FAQs
What is an outdoor LED sign, and how is this model different?
An outdoor LED sign is a weather-ready LED screen built for public viewing in sun and rain. This MetroSpec model is modular and customisable, so you can build the size and shape your site needs. As a result, it fits billboard-scale projects more naturally.
2) Which pixel pitch should I choose for an outdoor LED sign?
Choose pitch based on viewing distance. For example, closer audiences usually need a tighter pitch, while roadside viewing can use a larger pitch. Because MetroSpec offers 2.5mm–20mm, you can match performance to budget.
Will the screen stay readable in full daylight?
Yes. Brightness varies by series, and it ranges from 3,500 nits to >7,000 nits. Therefore, content remains clear in high ambient light.
Is this outdoor LED sign weatherproof enough for permanent installs?
It is designed for outdoor installs, with IP-rated protection listed as IP65 front / IP54 rear on many models. As a result, it handles rain and dust in exposed conditions.
Can you build the outdoor LED sign to a custom size or shape?
Yes. The system is modular and described as custom made for contours and exact sizing. In addition, the stacking design supports efficient builds on large projects.
What refresh rate do I need for sport, live video, or camera-heavy venues?
If you run fast motion content, higher refresh helps. This range includes 1920Hz and 3840Hz options, so motion stays smooth and camera capture improves.
How long will an outdoor LED sign last?
The listed lifetime (half brightness) is 100,000 hours. Therefore, it suits long-term media and venue deployments.
Who makes the display hardware behind this outdoor LED sign?
MetroSpec sources these screens from SANSI Displays and supports customers through build, install, and after-care. Because of this, you get both product and project support.
Need help selecting the right outdoor display?
Speak with our team to discuss your application and find the right solution.
