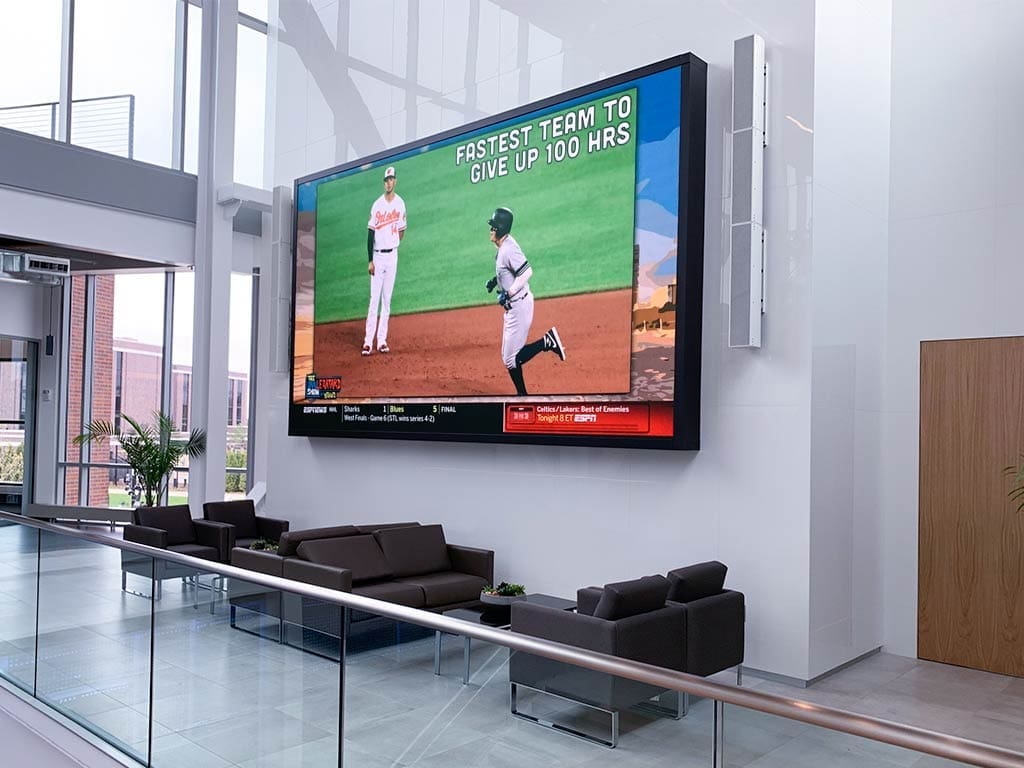

Indoor LED Displays

Experience crystal-clear visuals and dynamic content with our indoor LED displays. Our displays offer state-of-the-art technology, superior brightness, contrast and colour reproduction that results in stunning image quality. We also carry a variety of sizes and configurations to suit a variety of applications. Additionally, our energy-efficient technology also ensures long-lasting performance and cost savings.

Learn more

Our LED Digital Display Solutions

Our LED displays are reliable, sleek and eye catching. This is because they are sourced from one of the biggest and most reputable manufacturers – SANSI Displays. Our team also has some of the most extensive experience in the industry. This combination allows us to achieve the perfect custom LED solution for our clients as a result. We also take pride in close customer relationships to help our clients through the build, install and after care process.

Features

Our high-quality LED displays offer superior brightness, contrast and colour reproduction for stunning visual experiences. As a result, whether you’re looking for digital signage for your business, an event display for your next trade show or a high-definition video wall for your conference room, we have the perfect solution.

Additionally, our LED displays also come with advanced features such as automatic brightness adjustment, temperature control and advanced diagnostics. This ensures that your display operates at optimal performance and extends its lifespan. Our displays also offer a high refresh rate. As a result, this eliminates flickering and ensures a smooth video playback.

Applications

Our range of Indoor LED displays are also perfect for the following applications:

Digital Signage: Promote your brand and products with eye-catching graphics and videos. They are also ideal for indoor advertising in shopping malls, airports, banks, hotels and other public spaces.
Event Displays: These displays are perfect for trade shows, exhibitions, and other events. This is because they provide an immersive experience for attendees and can also be customised to showcase your brand and messaging.
Corporate Communications: Use our LED displays for internal communications, such as displaying important announcements, company news and employee recognition.
Conference Rooms: These displays are also ideal for conference rooms to display presentations, videos and other multimedia content.
Retail Displays: Use these displays in retail environments to showcase products, promotions and sales. They can also be customised to match your brand and create an immersive shopping experience.

Outstanding Visual Effects

Our range of SANSI LED displays also come in Ultra HD for true-to-life images. They also give outstanding visual performance thanks to their vidi colours, smart module features, crystal clear images and wide range of viewing and distance applications.

Custom Made

Our Indoor LED Displays are also customisable to fit your unique needs. We offer a range of pixel pitches and resolutions to ensure crisp, clear images from any distance. Also, because our LED displays are ultra slim and light they can be customised to specific shapes and contours. They are also easy to install. Finally, their energy-efficient technology ensures long-lasting performance and savings.

Durable

In addition to being customisable, our range of Indoor LED displays are built to last. This is thanks to quality materials, advanced manufacturing processes, rigorous testing, robust design and energy-efficient technology. This also ensures that your LED display provides reliable performance for years to come. Therefore making it a smart investment for your business or organisation.

Technical Specifications

Our range of LED displays are available in a multitude of sizes, pixel pitches and housing configurations. There is a LED screen to suit your application. A range of specifications for various models are shown below. Please contact us directly for information on other sizes.

VEII SeriesVSTVOH SeriesVWII Series

VEII SERIES MODEL	0.7mm	0.9mm	1.2mm	1.5mm	1.8mm	2.5mm
Pixel Pitch (mm)	0.7 mm	0.9 mm	1.2mm	1.5mm	1.8mm	2.5mm
Pixel Configruation	SMD	SMD	SMD	SMD	SMD	SMD
Module Dimensions (W x H x D)	150 x 168.75 mm	150 x 168.75mm	150 x 168.75mm	150 x 168.75mm	150 x 168.75mm	150 x 337.5mm
Cabinet Resolution (W x H)	768 x 432 mm	640 x 360 mm	480 x 270 mm	384 x 216 mm	320 x 180 mm	240 x 135 mm
Cabinet Dimensions (W x H xD)	600 x 337.5 x 38mm	640 x 337.5 x 38 mm	600 x 337.5 x 38 mm	600 x 337.5mm x 38mm	600 x 337.5 x 38 mm	600 x 337.5 x 38 mm
Cabinet Material	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium
Accessibility	Front	Front	Front	Front	Front	Front
Viewing Angles	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical
Brightness	450 Nits	450 Nits	600 Nits	600 Nits	600 Nits	600 Nits
Refresh Rate:	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second
Max. Power Consumption	585 W	585 W	610 W	415 W	350 W	380 W
Cabinet Weight	6 Kg/m²	6 Kg/m²	6 Kg/m²	6 Kg/m²	6 Kg/m²	6 Kg/m²
Operating Temperature	0 to +35°	0 to +35°	0 to +35°	0 to +35°	0 to +35°	0 to +35°
Humidity	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH

VST SERIES MODEL	1.04mm	1.25mm	1.5625mm	1.667mm	1.923mm	2.5mm
Pixel Pitch (mm)	1.04mm	1.25mm	1.5625mm	1.667mm	1.923mm	2.5mm
Pixel Configruation	SMD	SMD	SMD	SMD	SMD	SMD
Module Dimensions (W x H)	200 x 225 mm	200 x 225 mm	200 x 225 mm	200 x 225mm	200 x 225 mm	200 x 225 mm
Pixel Density	924,556 dot/m²	640,000 dot/m²	409,600 dot/m²	359,856 dot/m²	270,421 dot/m²	160,000 dot/m²
Cabinet Dimensions (W x H xD)	400 x 450 x 45 mm	640 x 450 x 45 mm	400 x 450 x 45 mm	400 x 450 x 45 mm	400 x 450 x 45 mm	400 x 450 x 45 mm
Cabinet Material	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium
Accessibility	Front	Front	Front	Front	Front	Front
Viewing Angles	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical
Brightness	800 Nits	800 Nits	800 Nits	800 Nits	800 Nits	800 Nits
Refresh Rate:	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second
Max. Power Consumption	945 W	630 W	500 W	450 W	450 W	430 W
Cabinet Weight	5.7 Kg/m²	5.7 Kg/m²	5.7 Kg/m²	5.7 Kg/m²	5.7 Kg/m²	5.7 Kg/m²
Operating Temperature	0 to +40°	0 to +40°	0 to +40°	0 to +40°	0 to +40°	0 to +40°
Humidity	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH

VOH SERIES MODEL	1.9mm	2.5mm	3.9mm	4.8mm
Pixel Pitch (mm)	1.9mm	2.5mm	3.9mm	4.8mm
Pixel Configruation	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module Dimensions (W x H)	250 x 250 mm	250 x 250 mm	250 x 250 mm	250 x 250 mm
Cabinet Dimensions (W x H xD)	1000 x 250 x 40 mm	1000 x 250 x 40 mm	1000 x 250 x 40 mm	1000 x 250 x 40 mm
Cabinet Material	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium
Accessibility	Front	Front	Front	Front
IP	IP30	IP30	IP30	IP30
Viewing Angles	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical
Brightness	1000 Nits	1000 Nits	1000 Nits	1000 Nits
Refresh Rate:	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second
Max. Power Consumption	650 W	580 W	580 W	580 W
Cabinet Weight	6 Kg/m²	6 Kg/m²	6 Kg/m²	6 Kg/m²
Operating Temperature	0 to +40°	0 to +40°	0 to +40°	0 to +40°
Humidity	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH

VWII SERIES MODEL	1.25mm	1.667mm	2.5mm	2.5mm X	4.0 mm	4.0 mm X
Pixel Pitch (mm)	1.25mm	1.667mm	2.5mm	2.5mm	4.0 mm	4.0 mm
Pixel Configruation	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED	SMD	SMD	SMD	SMD	SMD	SMD
Cabinet Dimensions (W x H xD)	640 x 360 x 39 mm or 320 x 360 x 39 mm	640 x 360 x 39 mm or 320 x 360 x 39 mm	640 x 360 x 39 mm or 320 x 360 x 39 mm	640 x 360 x 39 mm or 320 x 360 x 39 mm	640 x 360 x 39 mm or 320 x 360 x 39 mm	640 x 360 x 39 mm or 320 x 360 x 39 mm
Cabinet Material	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium	Die - Cast Aluminium
Accessibility	Front	Front	Front	Front	Front	Front
Viewing Angles	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical	160° Horizontal / 160° Vertical
Brightness	800 Nits	800 Nits	1200 Nits	3000 Nits	1200 Nits	4000 Nits
Refresh Rate:	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second	1920Hz/3840Hz 50/60 frames per second
Max. Power Consumption	555 W	415 W	555 W	685 W	555 W	980 W
Operating Temperature	0 to +45°	0 to +45°	0 to +45°	0 to +45°	0 to +45°	0 to +45°
Humidity	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH	30%RH-65%RH

LED Display Applications

Airports

Advertising

Businesses

Education Facilities

Hospitality

Public Transport

Retail

Stadiums and Arena’s

Tourism

FAQ

What is pixel pitch?

Pixel pitch is the distance from the centre of your LED Cluster (or pixel) to the centre of your next LED Cluster (or pixel) measured in millimetres. Pixel Pitch normally ranges from 0.6 mm to 10mm indoors and up to 30mm or higher for outdoors. Additionally, pixel pitch normally works in conjunction with optimal viewing distance and display resolution. The lower the pixel pitch ie. 0.6mm, the more pixels are used to make up the image on the display. Therefore improving resolution and the optimal viewing distance but generally at a greater cost. We can help you choose the perfect pixel pitch providing the optimal viewing distance and display resolution for your application.

What is a module?

A module is the basic structure that houses a number of pixels together – it is the smallest element in a LED screen which usually determines the overall size of the display.

What is a cabinet?

The cabinet is the frame of the LED sign and this is where all the modules sit either in a standard configuration or custom designed to suit a particular application. Our outdoor cabinets are generally made out of steel or strong aluminium.

What are the available communication methods for outdoor LED displays?

Graphics, text and videos can be uploaded by the following methods – cable, Wi-Fi, 3G/4G Mobile. However, we can help you to decide the most suitable communication method depending on our outdoor LED application.
