The E-Series delivers a reliable outdoor screen solution for environments where standard displays cannot perform effectively. It also combines high brightness, environmental protection, and flexible installation options to support a wide range of outdoor applications.
E-Series Outdoor Digital Display
The E-Series outdoor digital display delivers high brightness performance and reliable operation outside. It is perfect for visibility in direct sunlight and also supports applications across transport, public spaces, and commercial installations.
Key Specs:
- Sunlight readable
- IP-rated weatherproof enclosure
- 24/7 commercial operation
- Remote content management compatible
Outdoor Digital Display Solution for High-Visibility Environments
What is an Outdoor Digital Display?
An outdoor digital display delivers high brightness and durability for use in external environments where visibility and also reliability are critical. These displays maintain clear visibility in direct sunlight and also operate reliably in conditions exposed to weather, dust, and temperature variation. You can explore our full range of outdoor digital signage solutions here.
Key Features of the E-Series Outdoor Digital Display
01
High Brightness Outdoor Digital Screen (Up to 2500 Nits)
The E-Series outdoor LCD display delivers high brightness levels required for visibility in direct sunlight.
02
Weatherproof Outdoor Display (IP65 Rated)
The display is housed in an enclosure that is perfect for outdoor use. The enclosure protects internal components from dust, moisture, and temperature variations.
03
Outdoor Display Designed for Continuous Operation
This commercial outdoor display is suitable for applications requiring extended and also continuous operation, depending on configuration and installation environment.
04
Flexible Exterior Digital Signage Integration Options
This digital display works across a range of installations, including freestanding units and wall-mounted systems. In addition, this display is also a great solution for larger digital display solutions.
Applications of Outdoor Digital Displays
Outdoor digital displays like the E-Series support a wide range of industries and environments where visibility, durability, and real-time communication are critical. You can also explore our full range of outdoor digital signage solutions here.
An Outdoor Signage Display for Transport and Public Infrastructure

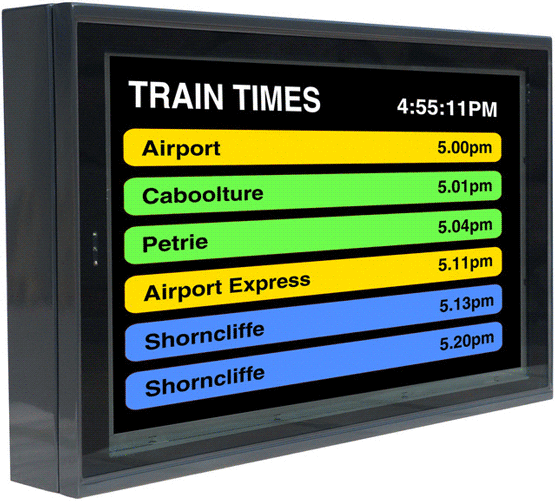

The E-series suits real time passenger information displays, timetables, and service updates across bus stops, train stations and also transit hubs. In fact, you can read more about our digital display solutions for transport applications here.
Exterior Digital Signage for Outdoor Advertising
This commercial outdoor digital screen is suitable for digital billboard-style applications where high brightness and visibility are required to deliver advertising content outside. In fact you can learn more about our digital display solutions for advertising here.
Outdoor Digital Display Solution for Councils and Community Messaging
This outdoor digital screen also enables councils and local authorities to communicate announcements, alerts, and public information outside. For example check out this case study, detailing how our displays are transforming safety messaging for local councils.
Outdoor Commercial Display for Retail and Commercial Environments
This display also supports promotional messaging, way finding, and brand visibility in open-air retail precincts and shopping centres. Learn more about our commercial digital displays for retail applications here.
Outdoor Digital Display (E-Series) Specifications
The E-Series Commercial Outdoor Display is available in multiple sizes and configurations. Specifications may also vary depending on the selected model and deployment requirements.
| E SERIES MODEL | MSE431500 | MSE461500 | MSE552500 |
|---|---|---|---|
| TFT Display | Full High Definition Active Matrix | Full High Definition Active Matrix | Full High Definition Active Matrix |
| Display Size | 42.5 Inches | 46 Inches | 54.6 Inches |
| Backlight Type | LED | LED | LED |
| Resolution | Full 1920 x 1080, RGB Stripe | Full 1920 x 1080, RGB Stripe | Full 1920 x 1080, RGB Stripe |
| Colours | 16.7M Colours | 10bit, (8bit+FRC) 1073.7M | 10 Bit (1.07 billion) - 8 Bit/10 bit selectable |
| Visibility angle | 178⁰ Right/Left, 178⁰ Up/Down | 178⁰ Right/Left, 178⁰ Up/Down | 178⁰ Right/Left, 178⁰ Up/Down |
| Response Time | 8MS | 8MS | 8MS |
| Luminance | 1500 cd/m ² (typ) | 1500 cd/m ² (typ) | 2500 cd/m ² (typ) |
| Contrast | 4000:1 (typ) | 4000:1 (typ) | 4000:1 (typ) |
| Active Area | 940.89 mm (L) x 529.25 mm (H) | 1018.08 mm (L) x 572.67 mm (H) | 1209.6 mm (L) x 680.4 mm (H) |
| STANDARDS | MSE431500 | MSE461500 | MSE552500 |
|---|---|---|---|
| EN55002 - CE - IEC60950 | Standard | Standard | Standard |
E Series Outdoor Digital Display Configuration Options
The E-Series outdoor digital display is configurable to suit a range of project requirements. For example:
- Multiple screen sizes
- Mounting options (wall-mounted, freestanding, integrated)
- Custom enclosure finishes
- Integration with content management systems (CMS), where required
Ask Us Anything
Outdoor Digital Display FAQs
What is an outdoor digital display used for?
These displays are used for advertising, transport information, public messaging, and also commercial signage in external environments.
What brightness is required for an outdoor digital screen?
Outdoor digital screens require high brightness levels to remain visible in direct sunlight. The required brightness depends on installation conditions.
What makes an outdoor display weatherproof?
Outdoor signage displays are designed with protective enclosures and components to withstand exposure to dust, moisture, and also temperature changes.
Where is exterior digital signage commonly used?
Exterior digital signage is used in transport systems, councils, retail environments, and also outdoor advertising applications.
What makes an outdoor digital display different?
Outdoor digital displays have higher brightness and protective enclosures to operate reliably in sunlight and harsh weather conditions.
Why choose Metrospec?
Metrospec is a division of Metromatics. We provide reliable outdoor digital display solutions backed by technical expertise and over 30 years’ experience. We also work closely with customers to understand application requirements and deliver solutions suited to specific environments, including transport, commercial, and public infrastructure projects. Finally, our focus is on providing durable, high-performance systems with ongoing support where required.
Need help selecting the right outdoor display?
Speak with our team to discuss your application and find the right solution.
