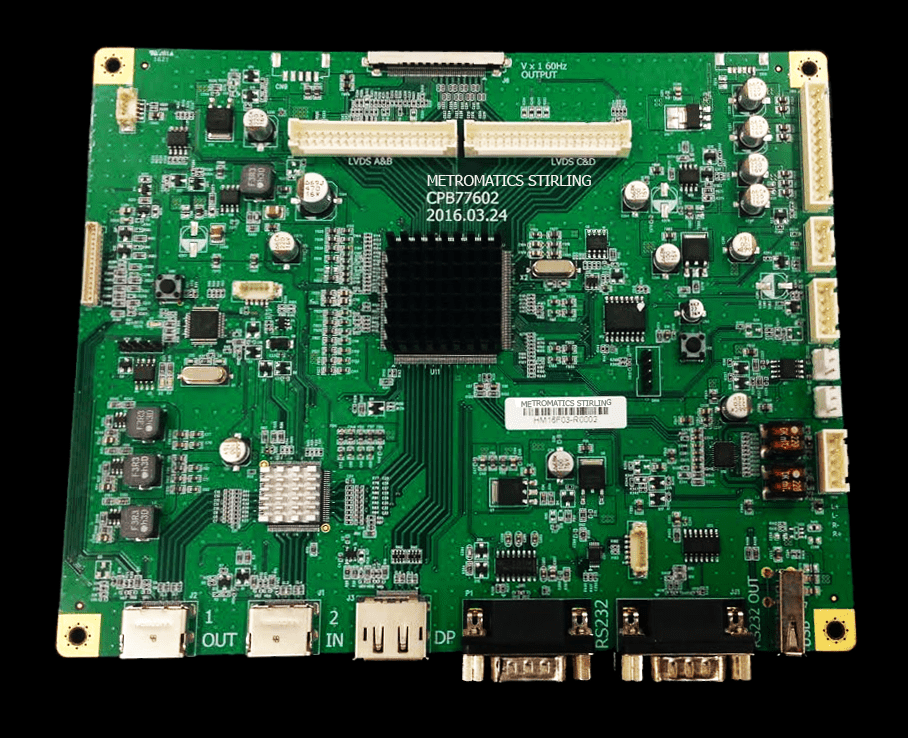

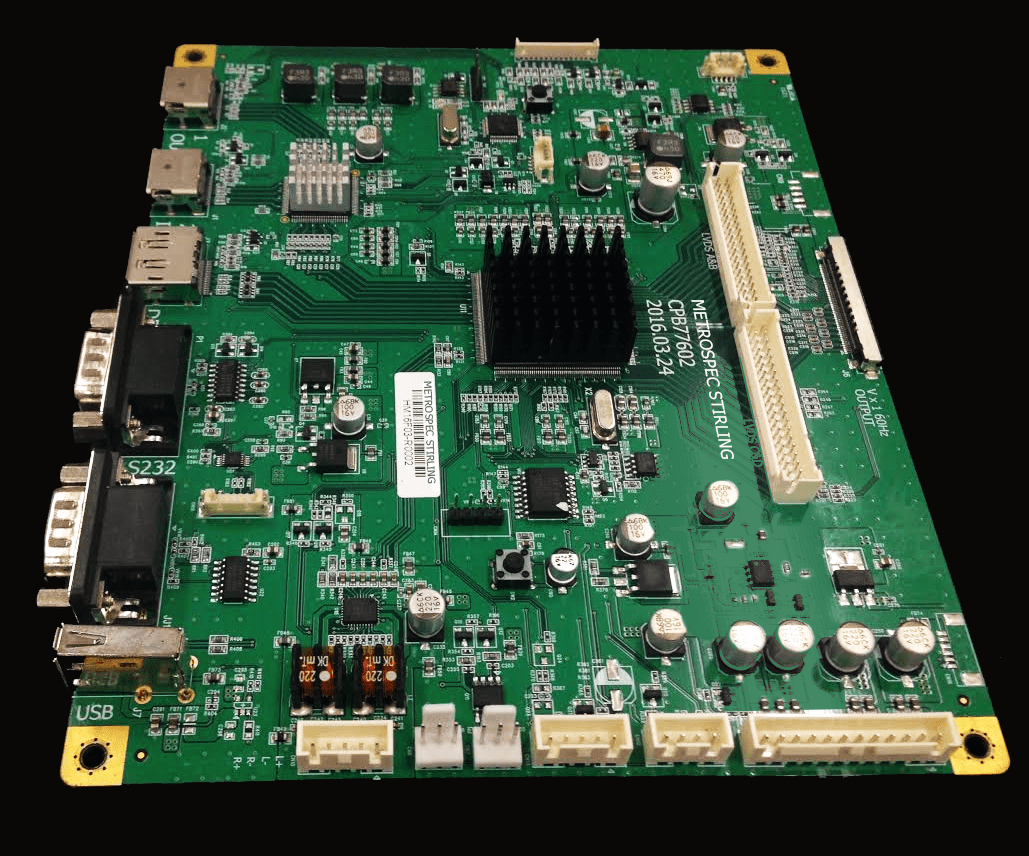

METROSPEC STIRLING – LCD CONTROLLER BOARD
Powerful, reliable, LCD controller board for high resolution LCD panels
[button bgcolor=”” text=”light” radius=”0″ size=”large” link=”#” url=”#introduction” scroll=”yes” offset=”20″ class=”btn-hero2 hvr-sweep-to-right2″]Learn more[/button]
[/grid]
[/row]
[/section]
[section bgcolor=”#f7f7f7″ padding_top=”20px” padding_bottom=”20px” id=”introduction”]
[row align=”middle”]
[grid size=”6″ class=”col-no-padding” ]
[grid size=”5″ offset=”1″]
BENEFITS OF A METROSPEC LCD CONTROLLER BOARD
This LCD controller board allows you to control all aspects of a display. Specifically, it’s what allows you to display images, videos and information on high resolution LCD panels.
[row_inner class=”margin-top-10 margin-bottom-30 row-no-margin”][grid_quarter align=”middle”][icon size=”3x” icon=”eye” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-1 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
THE PERFECT LCD CONTROLLER BOARD FOR ULTRA HIGH DEFINITION DISPLAYS
This LCD Controller board or “A/D Card” supports up to 3840 x 2160 Ultra High Definition (UHD) Panels.
[/grid_three_quarters][grid_quarter]
[icon size=”3x” icon=”signal” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-2 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
DAISY CHAIN FOR VIDEO WALLS
This LCD Controller Board also has HDMI 2.0 Daisy Chain ability including 4Kx2K Resolution.
[/grid_three_quarters]
[grid_quarter]
[icon size=”3x” icon=”hammer-wrench” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-3 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
CONFIGURATION & ACCESS
This LCD Controller Board’s 7 Button Keypad Interface and on-screen menus allows for easy adjustments to the system with access port for future firmware updates.
[/grid_three_quarters][grid_quarter]
[/row_inner]
[/grid]
[/row]
[/section]
[section bgcolor=”#fff”]
[row]
[grid size=”10″ offset=”1″]
PRODUCT DETAILS
The MetroSpec Stirling LCD Controller Board is used to control HD Panels, display images, videos and information on high resolution LCD Panels. The Stirling’s features are suited for applications in commercial digital signage, industrial outdoor digital signage and in harsher conditions where LCD Panels are used such as in defence and rail environments.
[/grid]
[/row]
[/section]
[section bgcolor=”#fff” padding_top=”20px” padding_bottom=”20px”]
[row align=”middle”]
[grid size=”5″]
COMPATABILITY
The perfect interface solution for LCD panels of most sizes.
[row_inner class=”margin-top-10 margin-bottom-30 row-no-margin”][grid_quarter]
[icon size=”3x” icon=”chart-settings” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-1 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
COMPLIANCE
It complies with HDCP 2.2, HDMI 2.0, Display Port V1.2a, and RoHS.
[/grid_three_quarters][grid_quarter]
[icon size=”3x” icon=”checkmark-circle” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-2 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
SUPPORT
It supports UHD panels (Vx1, eDP Interface), QHD (2560×1440@60Hz) panel with LVDS Interface.
[/grid_three_quarters][grid_quarter][icon size=”3x” icon=”shuffle” color=”#ed1c24″ align=”center” class=”icon-circle animate delay-3 show-on-scroll fadeInLeft margin-top-15 icon-mobile-tablets”]
[/grid_quarter]
[grid_three_quarters]
FLEXIBLE
Various input and output options including LCD dimming and fan control are available.
[/grid_three_quarters][/row_inner]
[/grid]
[grid size=”6″ offset=”1″ class=”col-no-padding hide-mobile”]
[/grid]
[/row]
[/section]
[section]
[row]
[grid size=”10″ offset=”1″]
TECHNICAL SPECIFICATIONS
Technical specifications for the MetroSpec Stirling LCD Controller Board are listed below. Please contact us directly for further information and pricing.
[/grid][grid size=”10″ offset=”1″ class=”text-center aligncenter cabinet-grid”]
[tabs layout=”horizontal” position=”top” class=””]
[tab title=”Stirling Model” icon=””]
| Item | Specification | |
|---|---|---|
| Hardware | Target panel | V by One = 3840 x 2160 @ 60Hz, Vx1 Interface (8lane) |
| eDP = 3840 x 2160 @ 60Hz, eDP Interface (8ch) | ||
| LVDS = 2560 x 1440 @ 60 Hz, LVDS Interface (4ch) | ||
| RS-232C | DSUB 9P – Male (Default) RJ45 (Optional) |
|
| Fan Control Port | 2 x 12V BLDC Motor Fan (Optional) | |
| Temperature Sensor | Internal | |
| Light Sensor | External (Option) | |
| Input | Video | HDMI 2.0 x 1 (HDCP 2.2) DP v1.2a x 1 SDI x 1 (Optional) |
| Key (7 Keys) | -,+, Left, Right, Source, Menu, Power | |
| IR (Infra-Red) | Remote Control | |
| RS-232C | DSUB 9P x 1 (Male): Serial Control, RJ45 (Optional) |
|
| Output | Video | HDMI 2.0 x 1: Output for HDMI Input SDI x 1: Output for SDI Input (Optional) |
| RS-232C | DSUB 9P x 1 (Male): Serial Control | |
| Speaker Output | 7W + 7W Typical. | |
| Power | Power | 12V, 5V, S5V Input |
[tab title=”Features” icon=””]
| Key Features |
|---|
| HDCP 2.2 Compliant |
| HDMI 2.0 Compliant |
| Display Port V1.2a Compliant |
| Supports HDMI 4Kx2K Input – HDMI, DP |
| RoHS Compliance |
| Supports software update through USB Memory |
| Supports UHD Panel (Vx1, eDP interface) |
| Supports up to QHD (2560x1440 @ 60Hz) Panel (LVDS Interface) |
| Seven-button keypad interface and on-screen menus allow adjustments to the system |
| Supported RS-232C |
| Supported RS-232C by RJ45 interface |
| IR: Remote Control |
| Power: 12V, 5V, 5V Input |
| LCD Dimming Control Auto Dimming Control by Light Ambient Sensor (Optional) Manual Dimming Level Control |
| 2 x Fan Control Port Automatic Fan Driving by Internal Temperature Sensor Manual Fan Driving |
| Supports the Daisy Chain Mode of 4K2K Resolution (Only HDMI Input) |
[tab title=”Daisy Chain” icon=””]
| Input Resolution | Specification | Remarks |
|---|---|---|
| 3840 x 2160 @ 60Hz | Supports up to 9 units | Only use HDMI 2.0 Cable |
| 3840 x 2160 @ 30Hz | Supports up to 16 units | |
| 1920 x 1080 @ 60Hz | Supports up to 25 units |
[tab title=”Environment” icon=””]
| Temperature | Humidity | |
|---|---|---|
| Operation | 0 to 50⁰C | 10 to 80% |
| Storage | -10 to 70⁰C | 10 to 90% |
[/tabs]
[/grid]
[/row]
[/section]
[section class=”brochure text-center” container=”no”]
LCD CONTROLLER BOARD APPLICATIONS
[row class=”row-no-margin text-center”][grid size_lg=”fifth” offset_lg=”fifth” class=”col-12-mobile”]
[icon icon=”plane” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Airports
[/grid][grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”screen” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Advertising
[/grid][grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”city” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Businesses
[/grid][divider space=”2px” class=”mobile-hidden”]
[grid size_lg=”fifth” offset_lg=”fifth” class=”col-12-mobile”]
[icon icon=”graduation-hat” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Education Facilities
[/grid][grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”coffee-cup” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Hospitality
[/grid][grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”train” color=”#ed1c24″ size=”2x” space=”yes” url=”https://metrospec.wpengine.com/tri-application/public-transport/”]
Public Transport
[/grid][divider space=”2px” class=”mobile-hidden”]
[grid size_lg=”fifth” offset_lg=”fifth” class=”col-12-mobile”]
[icon icon=”store” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Retail
[/grid]
[grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”checkmark-circle” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Stadiums and Arena’s
[/grid][grid size_lg=”fifth” class=”col-12-mobile”]
[icon icon=”luggage-weight” color=”#ed1c24″ size=”2x” space=”yes” url=”#” class”text-center”]
Tourism
[/grid][/row]
[/section]
[divider space=”20px”]
[section bgcolor=”#000″]
[row]
[grid size=”12″] [/grid][/row]
[/section]
[divider space=”20px”]
[section class=”text-center brochure” bgcolor=”#fff”]
[row]
[grid size=”5″ offset=”1″]
[icon icon=”document” align=”center” color=”#fff” size=”3x” class=”icon-bg circle”]
Brochure
[/grid][grid size=”5″]
[icon icon=”document” align=”center” color=”#fff” size=”3x” class=”icon-bg circle”]
Specifications
[/grid][/row]
[/section]
[section class=”text-center” bgcolor=”#fff”]
[row]
[grid size=”10″ offset=”1″]
Frequently Asked Questions
[/grid][/row][/section]
[section container=”yes” padding_bottom=”50px”]
[grid size=”10″ offset=”1″ ]
[divider class=”” size=”10px” color=”#f11f17″ ][accordion title=”How do I know whether I need a standard panel or a PD LCD Panel?” show=”no” ] You will need a PD LCD Panel if you plan on the following: running your LCD Display more than 6 hours a day as a standard panel is only designed to operate 4-8 hours per day; or if you require your LCD Display to be viewable outdoors you will definitely need a PD panel which is up to 4 times brighter than a standard LCD panel.[/accordion]
[accordion title=”What is the difference between a MetroSpec H Series and a MetroSpec X Series LCD Display?” show=”no” ]Both models are highly reliable. The difference is the X-series, is equipped with a door, which makes on site servicing possible.
H-series does not have a door, making it cheaper by reducing your capital expenditure. But that is not to say the H-series is not serviceable. It most certainly is, it just requires a different service and maintenance philosophy. By having a rotatable pool of spares, displays can be quickly swapped out and sent to a service technician for repair.
