Metrospec H-Series LCD Display

H-SERIES LCD DISPLAY

Modern, Sleek, Light Weight, Weather Resistant, Sunlight Readable, Outdoor LCD Display

Learn more
Metrospec H-Series Display demonstrating brightness with picture of Ayres Rock

Metrospec H-Series LCD Display Benefits

Display captivating images, clear messages and stunning videos




SCREENS

Vandal resistant with anti-reflective laminated glass, option of standard TV panel or our preference of a PD Panel; brightness of up to 4,000 Nits.





LARGE RANGE OF SIZES

Range of sizes from 24” – 86” in landscape or portrait modes.





DURABLE

Strong, sturdy, IP65 rated, weather resistant, dustproof, vandal-resistant; designed to operate 24/7 (PD Panel Only)



PRODUCT DETAILS

The MetroSpec H-Series is an IP65 rated, lightweight, waterproof and vandal resistant.  This outdoor LCD Display is also encased in a modern, sleek enclosure.

It has the option of a standard TV panel or our preferential PD Panel which enables extra features such as 24/7 operation with a brightness of up to 4,000 Nits making it sunlight readable. It is custom designed with a large array of options – audio, connectivity, touchscreen and PC’s.

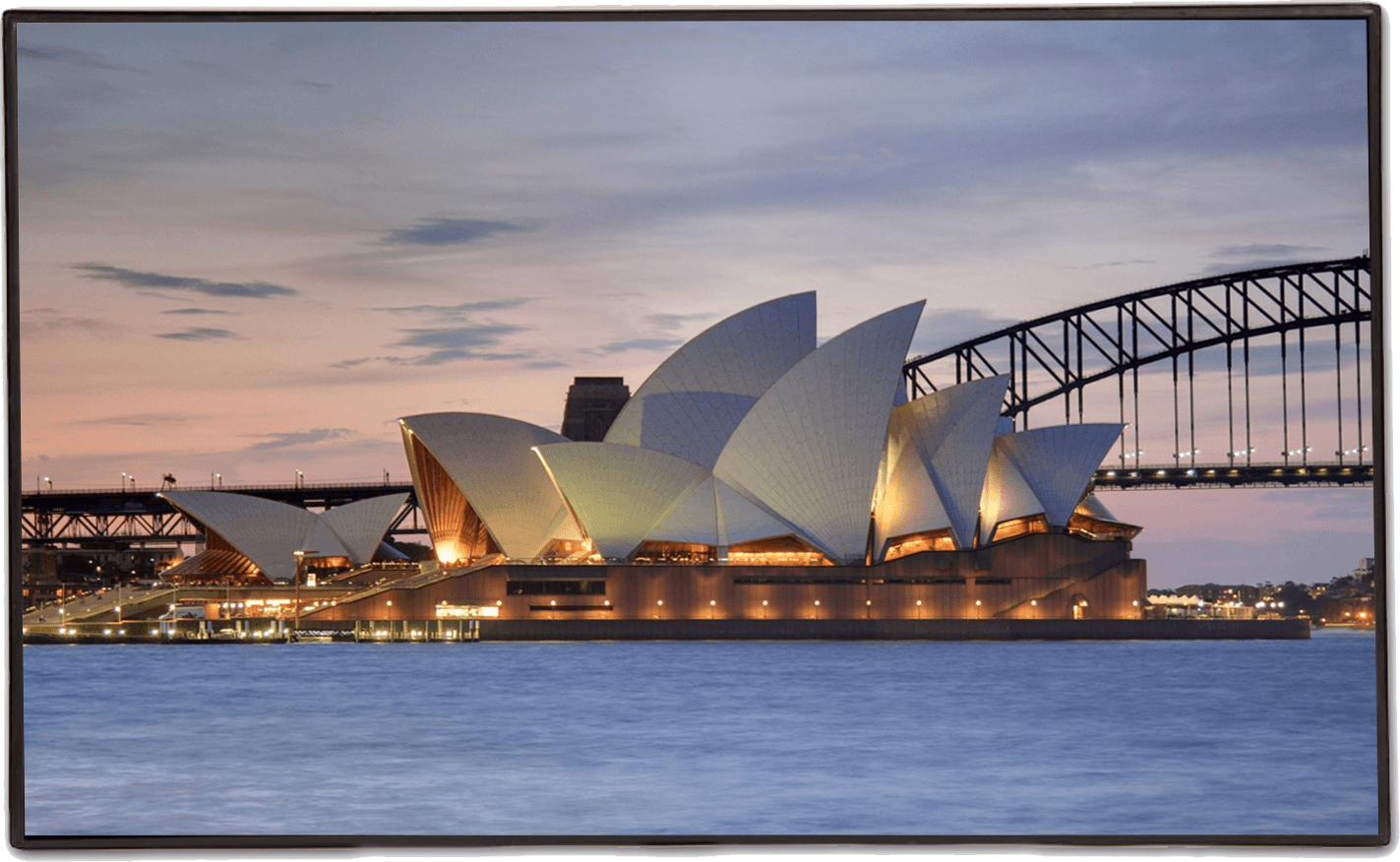

Metrospec H-Series Display with picture of Opera House

MetroSpec H-Series LCD Display Benefits

Attract the attention of your target audience in an outdoor environment.





CUSTOMISE

Enclosures are available in different colours and feature a range of audio connectivity options and PC/Media players to suit all users.





CONVENIENCE

The H-series is reliable and requires very little maintenance.




FLEXIBLE

Various software options are available to run your content and display the information to the screen.



TECHNICAL SPECIFICATIONS

The MetroSpec H Series Outdoor LCD Display is available in a range of sizes 24” – 86”. Technical Specifications for the 32” and 46” are listed below. Please contact us directly for information on other sizes.

Series ModelEnclosed MonitorEnvironmentalOptionsAccessoriesSoftware
H SERIES MODELH46iH32i
LCD Panel Size46"32"
Resolution1920 x 1080, 16:91920 x 1080, 16:9
Brightness1500 Nits2000 Nits
Contrast Ratio4000:1 (typ).1300:1 (typ).
Response Time8ms (typ).25ms (typ).
Viewing angleViewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)Viewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)
Half Light Life Time50,000 Hours50,000 Hours
Active Area572.67 (H) x 1018.08 (W) mm393 (H) x 699 (W) mm
Power Consumption205W150W
STANDARDSH46iH32i
EN55002 - CE - IEC60950StandardStandard
ENCLOSED MONITORH46iH32i
AluminiumStandardStandard
Enclosure Colour BlackStandardStandard
Other ColoursOptionOption
Dimensions760 (H) x 1170 (W) x 155 (D) mm
443 (H) x 748 (W) x 65 (D) mm
Weight
50 kg15 kg
Front Glass Anti-Reflective/LaminatedStandardStandard
Vesa Mounting Dimensions600 x 400 mm200 x 200 mm
ENVIRONMENTALH46iH32i
Operating Temperature-15⁰C to +50⁰C-15⁰C to +50⁰C
Optional Extended Operative Temperature which includes Intelligent Internal Environmental Control System
-40⁰C to +50⁰C-40⁰C to +50⁰C
Storage Temperature-20⁰C to +60⁰C-20⁰C to +60⁰C
Humidity10% to 90%10% to 90%
OPTIONSH46iH32i
Other InputsEthernet Wi-Fi; USB; 3G/4G; Audio; In-built ComputerEthernet Wi-Fi; USB; 3G/4G; Audio; In-built Computer
Video Input OptionsDVI; VGA; Composite; RGBDVI; VGA; Composite; RGB
Touch ScreensNear Field Capacitive or InfraredNear Field Capacitative or Infrared
Security & Protection OptionsPassword Protected Remote Control; Condensation Protection Circuitry; Over/Under Temperature Protection; Intelligent Internal Environmental ControlPassword Protected Remote Control; Condensation Protection Circuitry; Over/Under Temperature Protection; Intelligent Internal Environmental Control
ACCESSORIESH46iH32i
Remote Control / AAA Batteries (2)OptionalOptional
Quick Start GuideStandardStandard
VGA CableStandardStandard
OPTIONAL ACCESSORIESH46iH32i
Wall mount, Side mount, Ceiling Mount, Mounting Brackets Available
OptionalOptional
Bird Deterrents - Rollers or SpikesOptionalOptional
Protection HoodsOptionalOptional
MetroSpec PID Monitoring System (MPMS)OptionalOptional
SOFTWAREH46iH32i
MetroSpec Monitoring Software (NMS)OptionalOptional
MetroSpec Presenter SoftwareOptionalOptional
4Tel Real Time Scheduling SoftwareOptionalOptional
PADS SoftwareOptionalOptional





Frequently Asked Questions

How do I know whether I need a standard panel or a PD LCD Panel?
You will need a PD LCD Panel if you plan on the following: running your LCD Display more than 6 hours a day.  A standard panel is only designed to operate 4-8 hours per day.

If you require your LCD Display to be viewable outdoors you will definitely need a PD panel which is up to 4 times brighter than a standard LCD panel.


What is the difference between a MetroSpec H Series and a MetroSpec X Series LCD Display?
Both models are highly reliable. The difference is the X-series, is equipped with a door, which makes on-site servicing possible.

H-series does not have a door.  It is cheaper and reduces your capital expenditure. But that is not to say the H-series is not serviceable. It most certainly is, it just requires a different service and maintenance philosophy. By having a rotatable pool of spares, displays can be quickly swapped out and sent to a service technician for repair.

You can find further information on our blog Display Maintenance Philosophy


Enquire about a MetroSpec H-Series Outdoor LCD display today!
