Metrospec X-Series digital information display

X-SERIES LCD DIGITAL INFORMATION DISPLAY

Serviceable, Weather Resistant, Vandal Resistant and Sunlight Readable Digital Information Display



OUTDOOR LCD DIGITAL INFORMATION DISPLAY

Learn more

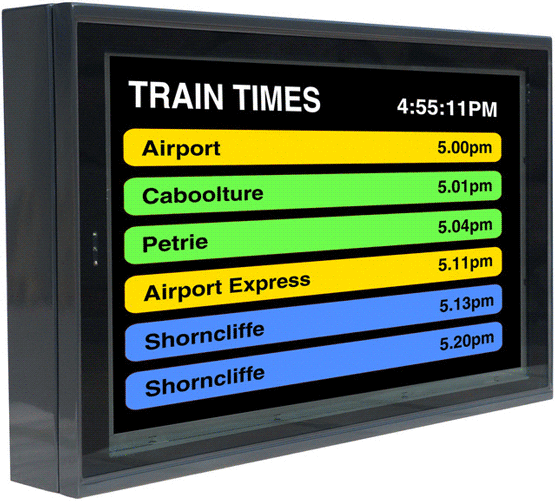

Metrospec X series lcd digital information display

BENEFITS OF A METROSPEC X-SERIES DIGITAL INFORMATION DISPLAY

Our Digital Information Display will allow you to produce bold, vibrant images and display clear concise information outdoors.




INFORMATION DISPLAY SCREENS

Our LCD digital display screen is vandal resistant.  Also, this screen is sunlight readable thanks to its anti-reflective laminated glass and and high bright display.  In fact, this screen displays up to 4,000 Nits.  As a result, this display is ideal for indoor and outdoor applications.  It can also be controlled by remote control and includes a quick start guide and VGA cable.





LARGE RANGE OF SIZES

Our LCD display is IP65 rated.  This means, you can rest easy knowing it’s made to last.  Furthermore, this display also comes in a large range of sizes.  Sizes range from 24” – 86”.  It can also display in landscape or portrait mode.





DURABLE DIGITAL SIGNAGE

Our digital information display is strong, sturdy, weather resistant and dust proof.  The PD panel is also designed to operate 24/7 without burning out.



DISPLAY DETAILS

The X series is reliable and IP65 rated.  It’s also readable in direct sunlight.  As a result, it’s perfect for outdoor applications.  It is also serviceable in the field and has a strong aluminium enclosure with anti-vandalism features.

In addition, this display can also be custom designed.  Options available include:  high UV limiting glass, bird deterrents, protection hoods, remote controls, audio, connectivity, touchscreen and PC’s.

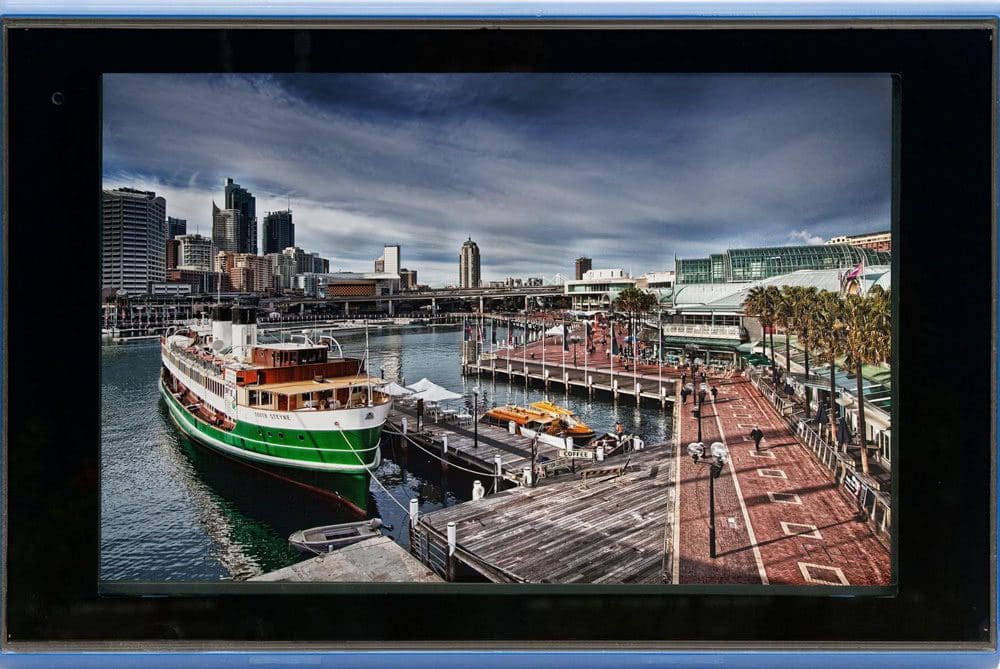

Metrospec digital information display front on view




CUSTOMISABLE

To top things off, enclosures are available in different colours.  Our digital displays also feature a range of audio connectivity options to suit all users.





CONVENIENT

The X-series is fully serviceable in the field.




FLEXIBLE

Various software options are available to run your content and display the information to the screen.



TECHNICAL SPECIFICATIONS

This display is available in a range of sizes.  Sizes range from 24” – 86”.  Technical specifications for the 32”, 43” and 46” are listed below. Please contact us directly for information about other sizes.

Series ModelEnclosed MonitorEnvironmentalOptionsAccessoriesSoftware
X SERIES MODELX46iX43iX32i
LCD Panel Size46"43"32"
Resolution1920 x 1080, 16:91920 x 1080, 16:91920 x 1080, 16:9
Brightness1500 Nits3000 Nits2000 Nits
Contrast Ratio4000:1 (typ).1100:1 (typ).1300:1 (typ).
Response Time8ms (typ).12ms (typ).25ms (typ).
Viewing angleViewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)Viewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)Viewing angle free R/L 178⁰(Min.) U/D 178⁰ (Min.)
Half Light Life Time50,000 Hours50,000 Hours50,000 Hours
Active Area572.67 (H) x 1018.08 (W) mm529.41 (H) x 941.18 (W) mm393 (H) x 699 (W) mm
Power Consumption205W300W150W
STANDARDSX46iX43iX32i
EN55002 - CE - IEC60950StandardStandardStandard
ENCLOSED MONITORX46iX43iX32i
AluminiumStandardStandardStandard
Enclosure Colour BlackStandardStandardStandard
Other ColoursStandardStandardStandard
Dimensions740 (H) x 1185 (W) x 150 (D)719 (H) x 1129 (W) x 156 (D)599 (H) x 920 (W) x 174 (D)
Weight50 kg42 kg32 kg
Front Glass Anti-Reflective/LaminatedStandardStandardStandard
Vesa Mounting Dimensions400 x 400 mm200 x 200 mm500 x 400 mm
ENVIRONMENTALX46iX43iX32i
Operating Temperature-15⁰C to +50⁰C-15⁰C to +50⁰C-15⁰C to +50⁰C
Optional Extended Operative Temperature which includes Intelligent Internal Environmental Control System-40⁰C to +50⁰C-40⁰C to +50⁰C-40⁰C to +50⁰C
Storage Temperature-20⁰C to +60⁰C-20⁰C to +60⁰C-20⁰C to +60⁰C
Humidity10% to 90%10% to 90%10% to 90%
OPTIONSX46iX43iX32i
Other InputsEthernet Wi-Fi; USB; 3G/4G; AUDIO, BUILT IN COMPUTEREthernet Wi-Fi; USB; 3G/4G; AUDIO, BUILT IN COMPUTEREthernet Wi-Fi; USB; 3G/4G; AUDIO, BUILT IN COMPUTER
Video InputsDVI; VGA; Composite; RGBDVI; VGA; Composite; RGBDVI; VGA; Composite; RGB
Touch ScreensNear Field Capacitive or InfraredNear Field Capacitive or InfraredNear Field Capacitive or Infrared
Security & Protection OptionsPassword Protected Remote Control; Condensation Protection of Circuitry; Over/Under Temperature Protection; Intelligent Internal Environmental Control (which allows display to work to -35 degrees Celsius)Password Protected Remote Control; Condensation Protection of Circuitry; Over/Under Temperature Protection; Intelligent Internal Environmental Control (which allows display to work to -35 degrees Celsius)Password Protected Remote Control; Condensation Protection of Circuitry; Over/Under Temperature Protection; Intelligent Internal Environmental Control (which allows display to work to -35 degrees Celsius)
ACCESSORIESX46iX43iX32i
Remote Control / AAA Batteries (2)OptionalOptionalOptional
Quick Start GuideStandardStandardStandard
VGA CableStandardStandardStandard
OPTIONAL ACCESSORIESX46iX43iX32i
Wall mount, Side mount, Ceiling Mount, Mounting Brackets AvailableOptionalOptionalOptional
Bird Deterrents - Rollers or SpikesOptionalOptionalOptional
Protection HoodsOptionalOptionalOptional
MetroSpec PID Monitoring System (MPMS)OptionalOptionalOptional
SOFTWAREX46iX43iX32i
MetroSpec Monitoring Software (NMS)OptionalOptionalOptional
MetroSpec Presenter SoftwareOptionalOptionalOptional
4Tel Real Time Scheduling SoftwareOptionalOptionalOptional
PADS SoftwareOptionalOptionalOptional





Brochure


Specifications

FREQUENTLY ASKED QUESTIONS

How do I know whether I need a standard panel or a PD LCD Panel?
You will need a PD LCD Panel if you plan on running your display more than 6 hours a day.  That’s because standard panels are designed to operate 4-8 hours per day.

Alternatively, if you want a screen that is viewable outdoors you will definitely need a PD panel.  That’s because a PD panel is up to 4 times brighter than a standard LCD panel.


What is the difference between a MetroSpec H series and a MetroSpec X series LCD display?
Both models are highly reliable. The difference is the X-series, is equipped with a door, which makes on-site servicing possible.

The H-series does not have a door which makes it cheaper.  But that is not to say the H-series is not serviceable. It just requires a different maintenance philosophy.  A rotatable pool of spares, allows you to swap out displays when you need to send one out for repair.

You can find further information on our blog Display Maintenance Philosophy
